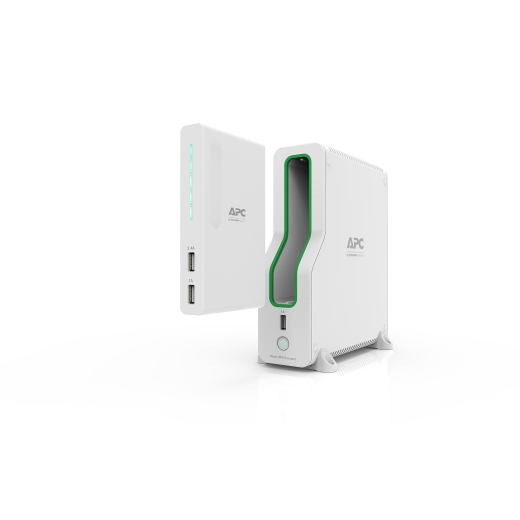

APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion

Share:
APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion
APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion

APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion

M12USWH

APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion
Discontinued
Call Sales Support
800-800-4272

M12USWH

APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion

Includes : Micro-USB cable , User manual

  • Fast recharge
    The removable mobile power pack charges in under 2.5 hours when docked in the base unit, so you always have network or mobile power when you need it.
  • Lithium-ion battery
    Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
  • Mobile device compatible
    Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.
  • Smart charging port
    A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.
  • USB charging ports
    Simultaneously charge mobile devices, including smartphones and tablets.

Mobile Power Packs Features & Benefits

  • Efficient charging
    Extends the Mobile Power Pack's battery life by automatically shutting down when the connected devices have completely charged.
  • LED battery charge indicator
    Push-button activated LED display provides battery charge status.
  • Mobile device compatible
    Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Bermuda , Bahamas , Belize , Canada , Chile , Colombia , Costa Rica , Dominican Republic , Ecuador , Guatemala , Honduras , Haiti , Jamaica , Cayman Islands , Mexico , Nicaragua , Panama , Puerto Rico , El Salvador , Trinidad & Tobago , United States , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Battery Capacity (mAh)
    11400
  • Battery Output Voltage
    5 V

Input

  • Nominal Input Voltage
    5V
  • Input Power
    11 Watts

Batteries & Runtime

  • Battery type
    Li-Ion (Lithium-Ion)
  • Expected Battery Life (years)
    3 - 5

Physical

  • Maximum Height
    0.91inches ( 23MM , 2.3CM )
  • Maximum Width
    5.12inches ( 130MM , 13.0CM )
  • Maximum Depth
    2.91inches ( 74MM , 7.4CM )
  • Net Weight
    0.6lbs. ( 0.27KG )
  • Shipping weight
    0.73lbs. ( 0.33KG )
  • Shipping Height
    1.08inches ( 28MM , 2.75CM )
  • Shipping Width
    6.46inches ( 164MM , 16.4CM )
  • Shipping Depth
    4.93inches ( 125MM , 12.53CM )
  • Color
    White

Conformance

  • Approvals
    cTUVus, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, FCC part 15 class B, ICES-003, UN 38.3
  • Standard warranty
    3 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Mobile Power Pack M12USWH
PDF
PDF

Size

251KB

Updated On

2022-07-04

User Manual for Mobile Power Pack M12USWH
Brochure
Title
Size
Updated On

Title

Back-UPS Connect BGE50ML-CA Brochure-Specification Sheet
PDF
PDF

Size

139KB

Updated On

2023-10-04

Two page brochure with top level features, benefits and specs

Title

Back-UPS Connect BGE50ML Specification Sheet
PDF
PDF

Size

141KB

Updated On

2023-10-04

Two page brochure with top level features, benefits and specs
Agency Approvals
Title
Size
Updated On

Title

CB certificate for APC BACK-UPS CONNECT 50 MOBILE POWER PACK, 11400MAH, LI-ION
PDF
PDF

Size

420KB

Updated On

2024-02-22

IEC 62133:2012

Title

UN38.3 Lithium Ion Battery Test Summary for BGE50ML, BGE50ML-CA, BGE50ML-JP, M12USWH, M12USWH-JP
PDF
PDF

Size

327KB

Updated On

2024-02-22

Title

EU DoC for APC Mobile Power Pack
PDF
PDF

Size

107KB

Updated On

2024-02-22

2014/35/UE, 2014/30/UE, 2011/65/UE

Title

cTUVus certificate for APC BACK-UPS CONNECT 50 MOBILE POWER PACK, 11400MAH, LI-ION
PDF
PDF

Size

275KB

Updated On

2024-02-22

UL 2054:2004 R9.11

Title

UN38.3 certificate for M12US
PDF
PDF

Size

997KB

Updated On

2024-02-22

IATA Dangerouns Goods Regulations (DGR) 55th Edition

Title

CE EMC report for M12US
PDF
PDF

Size

1240KB

Updated On

2024-02-22

EN 55022: 2010+AC2011 and CISPR 22: 2008 (modified); EN 61000-3-2: 2006+A1:2009 +A2:2009 and IEC 61000-3-2: 2005+A1:2008 +A2:2009; EN 61000-3-3: 2013 and IEC 61000-3-3: 2013; EN 55024: 2010 and CISPR 24: 2010; EN 61000-4-2: 2009 and IEC 61000-4-2: 2008; E

Title

FCC report for M12US
PDF
PDF

Size

1005KB

Updated On

2024-02-22

FCC CFR Title 47 Part 15 Subpart B: 2012- Section 15.107 and 15.109; ANSI C63.4-2009; Industry Canada Interference-Causing Equipment Standard ICES-003 Issue 5: 2012
Environmental Profile
Title
Size
Updated On

Title

Product Environmental Profile for Lithium Ion RBC_EN
PDF
PDF

Size

618KB

Updated On

2023-12-29

Title

End of Life instructions for Lithium Ion RBC _EN
PDF
PDF

Size

219KB

Updated On

2022-10-05

Title
Size
Updated On

Category

Sub-Category

APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion
APC Back-UPS Connect 50 Mobile Power Pack, 11400 mAh, Lithium Ion

M12USWH
$60.00
Call for Availability
800-800-4272
Call for Availability  800-800-4272
