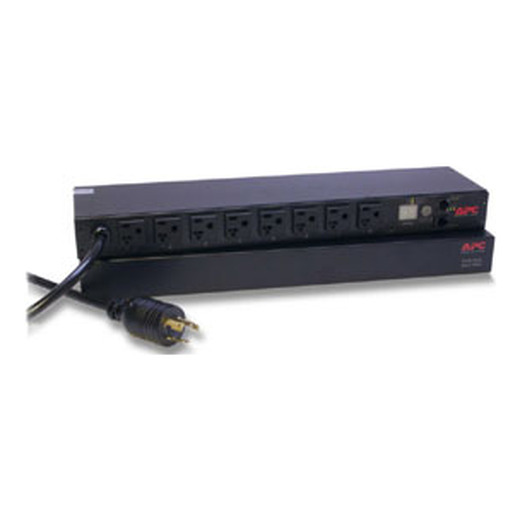

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Share:
Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

AP7901

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Discontinued
Call Sales Support
800-800-4272

NetShelter Switched Rack PDUs Features & Benefits

  • Gigabit Ethernet Connectivity
    9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 ethernet connectivity.
  • Enhanced Cybersecurity
    9000 series PDUs include APC Network Management card with security features including secured interfaces and a modified password policy providing peace of mind.
  • Network Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
  • Multi-tier user access
    Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
  • EcoStruxure IT Ready
    Seamless integration of one or many PDUs including alerts and control with EcoStruxure IT. Allows IT and data center professionals to monitor and manage all of their critical IT infrastructure on-premise, in the cloud, and at the edge from anywhere.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • Outlet Level Grouping
    Outlet power sequencing can be configured to group any combination of outlets to power up or down together providing flexibility.
  • Network Port Sharing
    Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.
  • 1% Metering Accuracy
    Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.
  • C13/C15 and C19/C21 Hybrid Outlets
    Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
  • 60C Operating Temperature
    All 8000 and 9000 series PDUs now provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
  • High Retention Outlets
    With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
  • Field-replaceable NMC
    Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
  • Hydraulic Magnetic Circuit Breakers
    Provide increased availability by maintaining trip current over a wide temperature range.
  • Flash Upgradeable
    Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Product Distribution
Product Distribution

Netherlands Antilles , Barbados , Bermuda , Brazil , Canada , Costa Rica , Dominican Republic , Ecuador , Greece , Guatemala , Honduras , Italy , Jamaica , South Korea , Morocco , Nicaragua , Netherlands , Panama , Puerto Rico , El Salvador , Turkey , Trinidad & Tobago , Taiwan , United States , Venezuela

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Maximum Total Current Draw
    16
  • Output Connections
    (8) NEMA 5-20R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA L5-20P
  • Cord Length
    12.14ft ( 3.7meters )
  • Acceptable Input Voltage
    100 - 120VAC
  • Number of Power Cords
    1
  • Load Capacity
    2400VA
  • Maximum Input Current
    20A
  • Regulatory Derated Input Current (North America)
    16A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.52inches ( 445MM , 44.5CM )
  • Maximum Depth
    4.25inches ( 108MM , 10.8CM )
  • Rack Height
    1U
  • Net Weight
    5.0lbs. ( 2.27KG )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 113 °F ( 0 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CSA, cUL listed, FCC part 15 class A, ICES-003, Industry Canada, UL 60950, UL listed
  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

MIB Reference Guide (Online Guide)
PDF
PDF

Size

122KB

Updated On

2024-02-21

Title

Release Notes Rack Power Distribution Units AOS v3.9.4 APP 3.9.3
PDF
PDF

Size

110KB

Updated On

2023-09-29

Title

Switched Rack PDU v 3.5.9 AOS v.3.5.8 rPDU (Online Guide)
PDF
PDF

Size

855KB

Updated On

2023-09-29

Title

Switched Rack PDU : Horizontal Models (Manual)
PDF
PDF

Size

739KB

Updated On

2023-09-29

Title

Switched Rack PDU (Manual)
PDF
PDF

Size

665KB

Updated On

2022-07-07

Catalogs
Title
Size
Updated On

Title

Rack Power Distribution Unit (PDU) Pocket Guide
PDF
PDF

Size

7075KB

Updated On

2024-11-04

Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications

Title

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 208 and 415V Compatibility Chart
PDF
PDF

Size

48KB

Updated On

2023-10-04

Chart that specifies the APC Modular Power Distribution Units that support the installation of APC 208V & 415V Power Distribution Modules and specifies compatible APC Rack PDUs for each PDM.
Design/Configuration
Title
Size
Updated On

Title

Switched Rack PDU 1 U, 100 V, 120 V, 15 A, 20 A (Sheet)
PDF
PDF

Size

56KB

Updated On

2023-09-29

Switched Rack PDU Overview/Specification Sheet for SKUs AP7900 and 7901
Stencils
Title
Size
Updated On

Title

AP7901_Visio Stencil - Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Source
Source

Size

213KB

Updated On

2021-08-27

Rack PDU, Switched
Quick Sales Reference Sheet
Title
Size
Updated On

Title

Reference for Next Generation AP7000 Series Metered and Switched Rack PDUs
PDF
PDF

Size

123KB

Updated On

2023-09-29

Reference the new features of the AP7000 Series "B" SKU PDUs which replaced the previous generation at the end of 2016.

Title

Reference for Next Generation AP7000 Series Metered and Switched Rack PDUs
Source
Source

Size

4883KB

Updated On

2019-07-30

Reference the new features of the AP7000 Series "B" SKU PDUs which replaced the previous generation at the end of 2016.
Title
Size
Updated On
Power Distribution, Switched Rack PDU
AP7901 - Rack PDU, Switched
CAD Source File
318KB
2023-10-04

AP7901 - Rack PDU, Switched
PDF
224KB
2023-10-04
