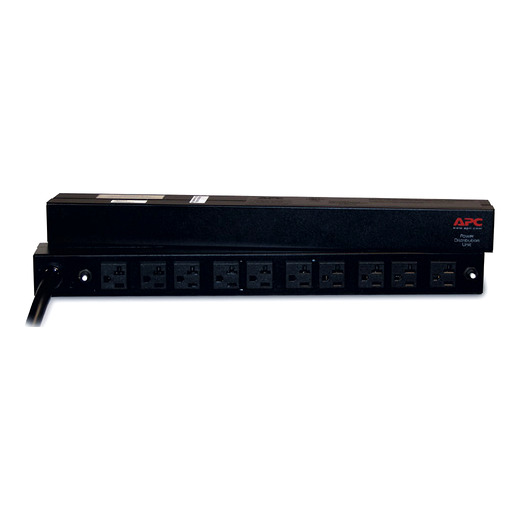

Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

Share:
Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

AP9560

In stock
$280.00
Quantity

AP9560

Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

Reliable rack power distribution

Includes : Rack mounting brackets , User manual

  • Resettable circuit breakers
    Enables a quick recovery from overload events.

NetShelter Basic Rack PDUs Features & Benefits

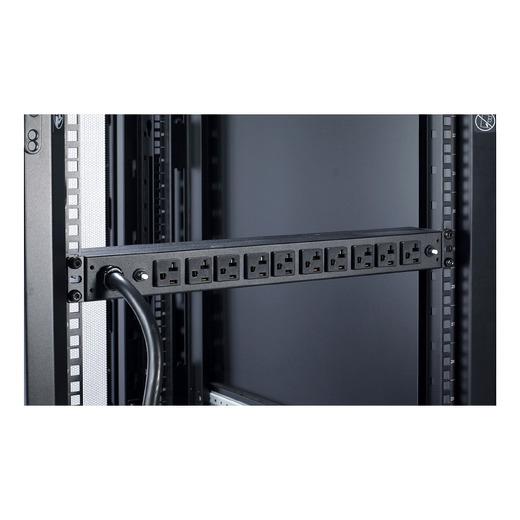

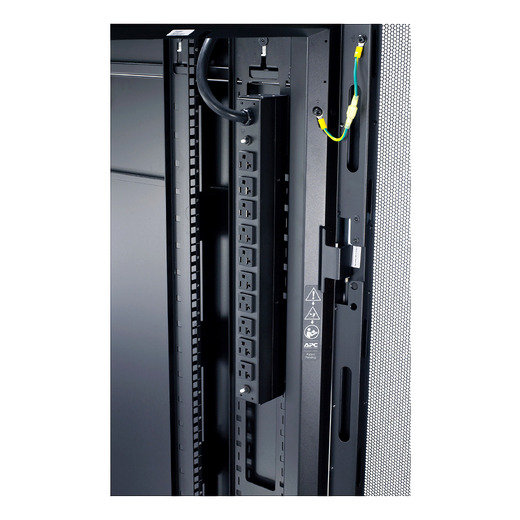

  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Bahamas , Belize , Dominica , Dominican Republic , Ecuador , Grenada , Guadeloupe , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Martinique , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    24
  • Output Connections
    (10) NEMA 5-20R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA L5-30P
  • Cord Length
    12.14ft ( 3.7meters )
  • Acceptable Input Voltage
    90 - 132VAC
  • Number of Power Cords
    1
  • Load Capacity
    2880VA
  • Maximum Input Current
    30A
  • Maximum Line Current
    24A
  • Regulatory Derated Input Current (North America)
    24A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.6inches ( 447MM , 44.7CM )
  • Maximum Depth
    2.24inches ( 57MM , 5.7CM )
  • Rack Height
    1U
  • Net Weight
    5.51lbs. ( 2.5KG )
  • Shipping weight
    8.02lbs. ( 3.64KG )
  • Shipping Height
    5.98inches ( 152MM , 15.2CM )
  • Shipping Width
    6.97inches ( 177MM , 17.7CM )
  • Shipping Depth
    19.13inches ( 486MM , 48.6CM )
  • Color
    Black

Environmental

  • Operating Temperature
    5 - 113 °F ( -15 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    cUL listed, UL 60950, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Basic Rack PDU AP9560 & AP9561 (Manual)
PDF
PDF

Size

326KB

Updated On

2023-09-29

Installation
Catalogs
Title
Size
Updated On

Title

Rack Power Distribution Unit (PDU) Pocket Guide
PDF
PDF

Size

7075KB

Updated On

2024-11-04

Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications
Agency Approvals
Title
Size
Updated On

Title

CCC Exemption Letter
PDF
PDF

Size

742KB

Updated On

2024-07-23

CCC Out Of Scope Letter PDUs Metered/Switched

Title

Confirmation Letter for Products Outside the scope of China Certificate
PDF
PDF

Size

83KB

Updated On

2022-10-07

Environmental Profile
Title
Size
Updated On

Title

EoLi - Basic Rack PDUs
PDF
PDF

Size

676KB

Updated On

2022-10-05

End of Life Instruction (EoLI) for the Basic Rack PDU Product Range
Title
Size
Updated On
Power Distribution, Basic Rack PDU
AP9560 - Rack PDU, Basic
CAD Source File
358KB
2023-09-29

AP9560 - Rack PDU, Basic
PDF
127KB
2023-09-29
