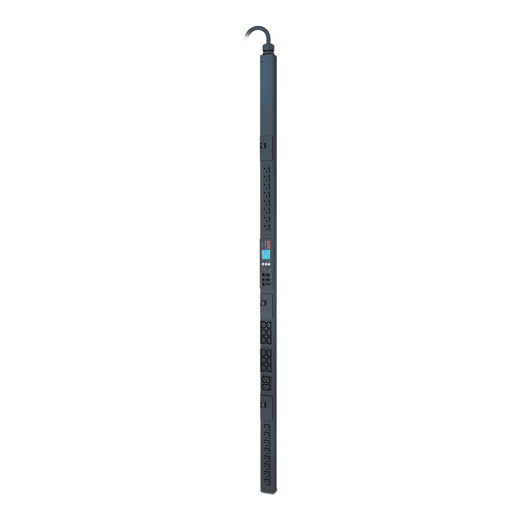

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes
:
Installation guide
,
Rack mounting brackets
,
Safety guide
,
Serial configuration cable
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
NetShelter Metered Rack PDUs Features & Benefits
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
60C Operating Temperature
All 8000 and 9000 series PDUs now provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Product Distribution
Product Distribution
Belgium
,
Canada
,
Chile
,
Colombia
,
Serbia and Montenegro
,
Croatia
,
Israel
,
Italy
,
South Korea
,
Netherlands
,
Peru
,
Slovenia
,
United States
Print Technical Specification
Output
Nominal Output Voltage
120V
Other Output Voltages
240
Overload Protection
Yes
Maximum Total Current Draw
24
Output Connections
(2)
IEC 60320 C19
(Battery Backup)
(12)
IEC 60320 C13
(Battery Backup)
(16)
NEMA 5-20R
(Battery Backup)
Input
Nominal Input Voltage
120V
,
208V
Input frequency
50/60 Hz
Input Connections
NEMA L14-30P
Cord Length
9.84ft
(
3meters
)
Number of Power Cords
1
Load Capacity
4992VA
Maximum Input Current
30A
Regulatory Derated Input Current (North America)
24A
Physical
Maximum Height
70.51inches
(
1791MM
,
179.1CM
)
Maximum Width
2.17inches
(
55MM
,
5.5CM
)
Maximum Depth
1.73inches
(
44MM
,
4.4CM
)
Net Weight
14.07lbs.
(
6.38KG
)
Shipping weight
15.85lbs.
(
7.19KG
)
Shipping Height
78.98inches
(
2006MM
,
200.6CM
)
Shipping Width
4.26inches
(
108MM
,
10.83CM
)
Shipping Depth
6.48inches
(
165MM
,
16.47CM
)
Color
Black
Environmental
Operating Temperature
23 - 140 °F
(
-5 - 60 °C
)
Operating Relative Humidity
5 - 95 %
Operating Elevation
0 - 10000ft
(
0 - 3048meters
)
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
5 - 95 %
Storage Elevation
0 - 50000ft
(
0 - 15240meters
)
Conformance
Approvals
cUL listed, FCC part 15 class A, ICES-003, UL 60950-1, UL listed
