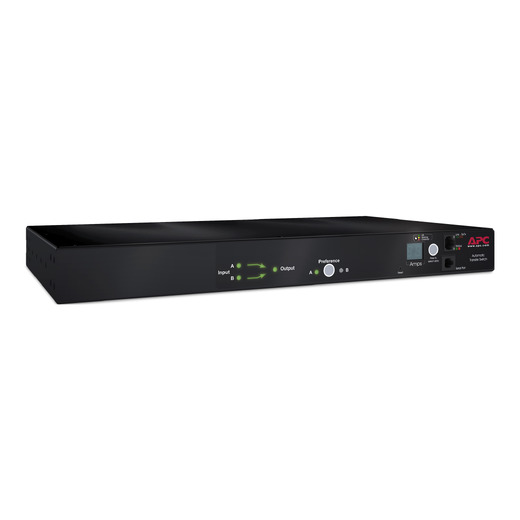

AP7750A

Rack ATS, 100-120V, 15A, 5-15P In, (10) 5-15R Out

Intelligent and cyber-secure transfer switch for seamless power switching

Includes : Rack mounting brackets , User manual

  • Flash Upgradeable
    Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
  • Quick Transfer Rate
    Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
  • Remote Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

NetShelter Rack Transfer Switches Features & Benefits

  • Rack-Mountable
    Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.

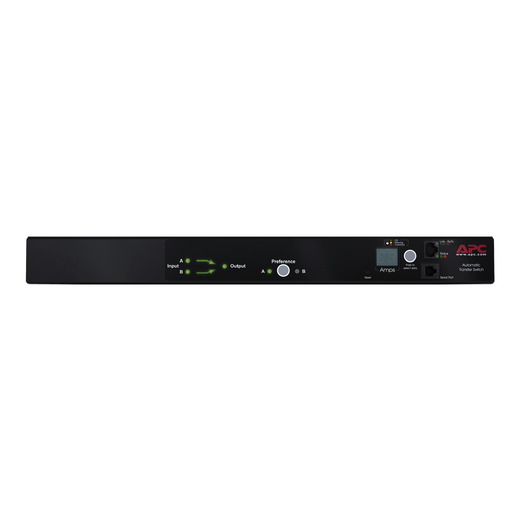

  • Information Displays
    Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Transfer time <10ms
    Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.
  • Dual Input Power Sources
    Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
  • 10 kAIC Overcurrent Protection
    Provides protection in the event of a significant overcurrent event.
  • Color LCD display
    Provides more robust and intuitive local control and manageability.
  • Network Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Switzerland , Chile , Costa Rica , Czechia , Dominica , Dominican Republic , Ecuador , Grenada , Greece , Guatemala , Guyana , Honduras , Haiti , Israel , Italy , Jamaica , St. Kitts & Nevis , South Korea , Cayman Islands , St. Lucia , Morocco , Nicaragua , Panama , Peru , Puerto Rico , Paraguay , Romania , Slovakia , El Salvador , Trinidad & Tobago , Taiwan , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    100V , 120V
  • Maximum Total Current Draw
    15
  • Output Connections
    (10) NEMA 5-15R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Cord Length
    7.87ft ( 2.4meters )
  • Acceptable Input Voltage
    100 - 125VAC
  • Number of Power Cords
    2
  • Load Capacity
    1440VA
  • Maximum Input Current
    15A
  • Regulatory Derated Input Current (North America)
    12A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    9.29inches ( 236MM , 23.6CM )
  • Rack Height
    1U
  • Net Weight
    10.36lbs. ( 4.7KG )
  • Shipping weight
    14.29lbs. ( 6.48KG )
  • Shipping Height
    2.76inches ( 70MM , 7.0CM )
  • Shipping Width
    13.5inches ( 343MM , 34.3CM )
  • Shipping Depth
    19.13inches ( 486MM , 48.6CM )
  • Color
    Black

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    FCC part 15 class A, ICES-003, PSE, TÜV-C, TÜV-NURTL, VCCI class A
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
