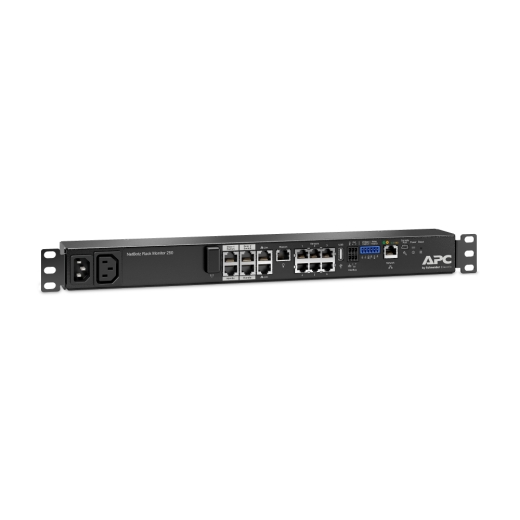

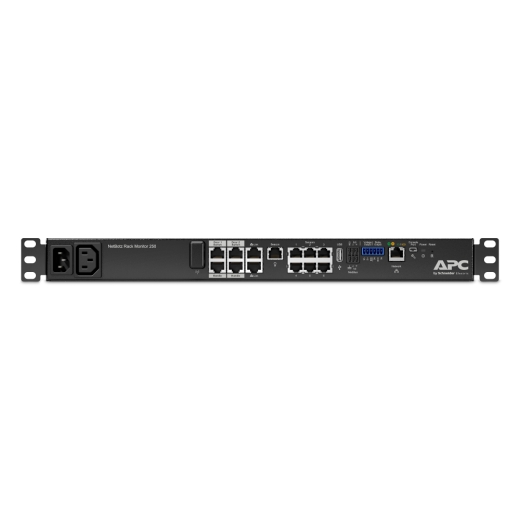

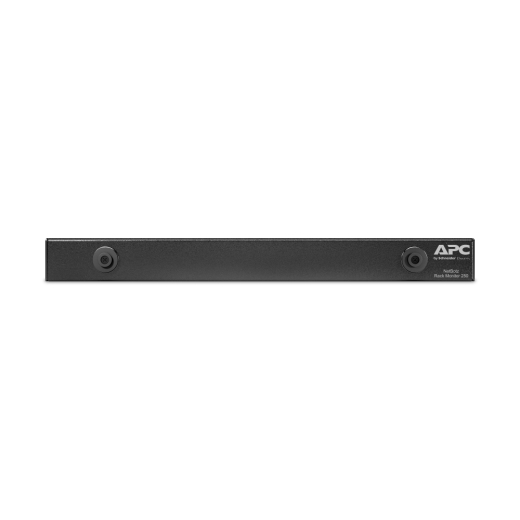

NetBotz Rack Monitor 250

NetBotz Rack Monitor 250

NBRK0250

NetBotz Rack Monitor 250
Discontinued

NBRK0250

NetBotz Rack Monitor 250

NetBotz offers real-time visibility, proactive monitoring, and customizable features to ensure optimal environmental conditions, physical security, and avoid downtime

Includes : Country-specific detachable power cord , Installation guide , Rack Mounting brackets , Temperature/Humidity Sensor

  • Customizable Output Relays
    Control output from external devices via output relay(s).
  • Native wireless sensor support
    Manage up to 47 NetBotz wireless temperature and temp/humidity sensors from a single NetBotz

NetBotz 200 Features & Benefits

  • Password security
    User-selectable password with strong password rules and reset password mechanism.
  • Fault notification
    Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
  • Environmental monitoring
    Prevent equipment failure from a full range of threatening environmental conditions.
  • Reduce Cabling
    Features wireless sensors to reduce the clutter and expense of cabling.
  • Access monitoring
    Detect access by unauthorized personnel via door switch.
  • Reboot equipment remotely
    Saves dispatching technicians to remote locations.
  • Slim form factor
    Can be mounted in a rack alongside other IT gear, or zero –U mounted in the back
  • Flexibility and adaptability
    Can be the environmental monitoring solution, or the rack access control solution, or both.
  • Adjustable threshold
    Customize threshold definitions (multiple thresholds per sensor, scheduling, severity levels) to your requirements.
  • Encryption
    Helps ensure effective access control and integrity for SSL browser and SSH sessions.
  • Browser Accessible
    View the user interface with a browser. Provides quick access from anywhere on a secure network.
  • Enterprise management system compatible
    Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
  • Easy Integration
    Integrates with APC racks, NetBotz sensors, and Data Center Expert for easy deployment, configuration, and management.
  • Integrates with StruxureWare Data Center Expert
    An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Product Distribution
Product Distribution

Andorra , United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Aruba , Azerbaijan , Bosnia & Herzegovina , Barbados , Bangladesh , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Brunei , Bolivia , Brazil , Bahamas , Bhutan , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Central African Republic , Congo - Brazzaville , Switzerland , Côte d’Ivoire , Cook Islands , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cuba , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Western Sahara , Eritrea , Spain , Ethiopia , Finland , Fiji , Falkland Islands , France , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gibraltar , Gambia , Guinea , Guadeloupe , Equatorial Guinea , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iran , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liechtenstein , Sri Lanka , Liberia , Lesotho , Lithuania , Luxembourg , Latvia , Morocco , Moldova , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Niger , Nigeria , Nicaragua , Netherlands , Norway , Nepal , New Zealand , Oman , Panama , Peru , Papua New Guinea , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Qatar , Réunion , Romania , Russia , Rwanda , Saudi Arabia , Sudan , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Chad , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , TP , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , XF , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Number of Power Cords
    1
  • Input Power
    2400 Watts

Physical

  • Maximum Height
    1.72inches ( 44MM , 4.4CM )
  • Maximum Width
    17.0inches ( 432MM , 43.2CM )
  • Maximum Depth
    2.33inches ( 59MM , 5.9CM )
  • Rack Height
    1U
  • Net Weight
    2.8lbs. ( 1.27KG )
  • Shipping weight
    6.5lbs. ( 2.95KG )
  • Shipping Height
    2.6inches ( 66MM , 6.6CM )
  • Shipping Width
    18.0inches ( 457MM , 45.7CM )
  • Shipping Depth
    8.9inches ( 226MM , 22.6CM )

Environmental

  • Operating Temperature
    32 - 113 °F ( 0 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-10000ft ( 0-3000meters )
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-50000ft ( 0-15000meters )

Conformance

  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains SVHCs
  • Battery Directive
    Compliant

General

  • Type of Camera Pods Supported
    Rack Sensor Pod 150
  • Type of External Sensors Supported
    Door Contact, Dry Contact, Humidity, Smoke, Fluid Spot Leak, Temperature, Vibration
  • Number of Universal Sensor Ports
    6
  • Number of Universal Sensors Supported
    6
  • Sensor Humidity Range
    ±3% RH from 11% to 89% RH %
  • Number of Cameras Supported
    0 Integrated, 0 Networked, 0 USB
  • Sensor Temperature Range
    15°C to 50°C (32°F to 122°F) +/- 1°C (1.8°F) °F
Manuals and Warranties
Title
Size
Updated On
PDF

Size

2754KB

Updated On

2024-09-04

Provides complete details on how to use the NetBotz Rack Monitor 250 software interface
PDF

Size

548KB

Updated On

2024-04-19

PDF

Size

720KB

Updated On

2023-03-07

Rack access handles for use with the NetBotz Rack Monitor 250, 750, and 175 Rack Access Pod
PDF

Size

127KB

Updated On

2023-02-27

AOS v7.0.4, APP v7.0.6
PDF

Size

3523KB

Updated On

2022-09-14

Includes physical description, inventory list, installation procedures, network configuration procedures, specifications, warranty details.
PDF

Size

2111KB

Updated On

2022-08-22

Configuration; Customization
Brochure
Title
Size
Updated On
PDF

Size

613KB

Updated On

2023-09-29

Product brochure detailing the NetBotz 250 benefits and options.
PDF

Size

8246KB

Updated On

2023-09-29

Customer Facing NetBotz 250 Inforgraphic
PDF

Size

5999KB

Updated On

2023-09-29

eGuide focused on Environmental Monitoring
Design/Configuration
Title
Size
Updated On
PDF

Size

347KB

Updated On

2023-05-25

Overview of NetBotz appliances, sensors, cables, software, support and management compatibility.
Agency Approvals
Title
Size
Updated On
PDF

Size

239KB

Updated On

2024-02-22

PDF

Size

360KB

Updated On

2024-02-22

CCC Exemption
PDF

Size

238KB

Updated On

2024-02-22

PDF

Size

694KB

Updated On

2024-02-21

PDF

Size

677KB

Updated On

2022-10-07

PDF

Size

162KB

Updated On

2022-10-07

CB CERTIFICATE NBRK_62368
PDF

Size

453KB

Updated On

2022-10-07

NBRK0250, NBRK0570, NBRK0750 UL Certificate of Compliance_62368
Title
Size
Updated On

Category

Sub-Category


Extended warranty, parts and software support, for NetBotz 2 Series, 3 year

Get an extension of factory warranty coverage beyond the original factory warranty term for peace of mind and protection from failure

Wireless, Accessory, NetBotz, USB Coordinator & Router

Wireless USB receiver and router. When plugged into compatible appliances, it enables a wireless network to be created. When used with the included power supply, it extends the range of the wireless network.

NBWC100U
$103.00
Wired, Sensor, NetBotz, Smoke Detection, 10 ft

Universal Sensor that detects smoke in IT spaces. This sensor supplements the existing life safety system already in place.

NBES0307
$212.00
Wired, Sensor, NetBotz, Vibration, 12 ft

Universal Sensor that detects vibration in racks that may indicate movement of IT assets.

Rack Mount, Pod, NetBotz, 150 Rack Sensor

Sensor pod optimized for rack mounting that supports 6 Universal Sensors.

NBPD0150
$302.00
Wired, Sensor, NetBotz, 0-5V Cable, 15 ft

Universal Sensor that monitors third-party 0–5V analog sensors.

NBES0305
$64.00
Wired, Sensor, NetBotz, Dry Contact Cable, 15 ft

Universal Sensor that monitors third-party dry contact state sensors.

NBES0304
$40.00
Wired, Accessory, NetBotz, Alarm Beacon, Visual

Quickly notify personnel of critical situations with a visible alarm signal. Compatible with select NetBotz appliances.

AP9324
$183.00
Wired, Sensor, NetBotz, 2 Door Switch Sensor

Universal Sensor that monitors access to NetShelter SX Enclosures.

NBES0303
$107.00
Wired, Sensor, NetBotz, Door Switch Sensor, 50 ft

Universal Sensor that monitors access to a rack or room.

NBES0302
$60.00
