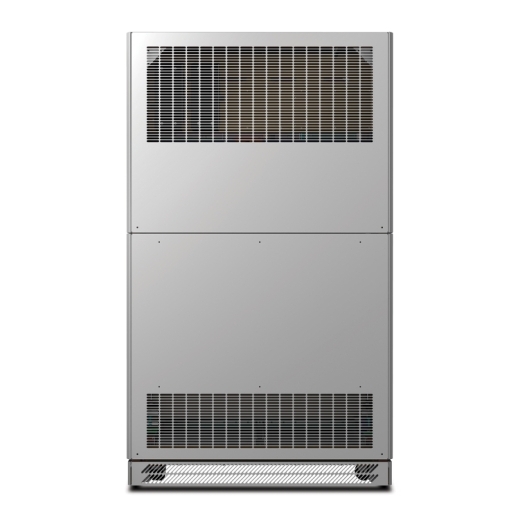

MGE Power Management Module 125 kVA

Share:
MGE Power Management Module 125 kVA MGE Power Management Module 125 kVA
MGE Power Management Module 125 kVA

MGE Power Management Module 125 kVA

PMM125

MGE Power Management Module 125 kVA
Discontinued
Call Sales Support
800-800-4272

PMM125

MGE Power Management Module 125 kVA

  • UPS compatible
    Uniquely designed to accept input power from any single phase, 120V power source such as a UPS, solar panel or other alternative energy power inputs.

Cabinet Power Distribution Features & Benefits

  • Pretested breakers
    All breakers are pretested at the factory, enhancing reliability.
  • Multiple distribution options
    Superior design flexibility enables a wide range of customer requirements to be addressed.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Efficient cable management
    Organizes the routing of cables, which simplifies maintenance or future expansion.
  • Front-access servicing
    Simplifies installation and UPS maintenance while minimizing space requirements.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Chile , Colombia , Costa Rica , Dominica , Dominican Republic , Ecuador , Grenada , Guadeloupe , Guatemala , Guyana , Honduras , Haiti , India , Jamaica , St. Kitts & Nevis , Cayman Islands , St. Lucia , Martinique , Nicaragua , Panama , Peru , Puerto Rico , Paraguay , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V , 208V 3PH
  • Maximum Total Current Draw
    347

Input

  • Nominal Input Voltage
    480V 3PH , 600V 3PH
  • Input frequency
    60 Hz +/- 5 Hz
  • Input Connections
    Hard wire 4-wire (3P + E), Hard wire 5-wire (3P + N + E)
  • Maximum Line Current
    157A

Physical

  • Maximum Height
    72.32inches ( 1837MM , 183.7CM )
  • Maximum Width
    102.52inches ( 2604MM , 260.4CM )
  • Maximum Depth
    29.57inches ( 751MM , 75.1CM )
  • Net Weight
    2700.66lbs. ( 1225.0KG )
  • Color
    Beige

Environmental

  • Operating Temperature
    14 - 104 °F ( -10 - 40 °C )
  • Operating Relative Humidity
    10 - 90 %
  • Operating Elevation
    0 - 3333ft ( 0 - 1015.9meters )
  • Storage Temperature
    -40 - 60 °C
  • Storage Relative Humidity
    10 - 90 %
  • Storage Elevation
    0 - 30000ft ( 0 - 9144meters )

Conformance

  • Approvals
    CSA C22.2 No 60950, FCC part 15 class A, UL 60950
  • Standard warranty
    1 year repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Power Management Module 30-300 kVA Installation and Operation manual
PDF
PDF

Size

1994KB

Updated On

2023-10-04

Installation manual providing the certified electrician with information on how to install and connect the power management module, and operation manual containing information on operation, maintenance and troubleshooting for the user of the power management module system
Brochure
Title
Size
Updated On

Title

Power Management Module, 30-300kVA Brochure
PDF
PDF

Size

148KB

Updated On

2023-10-04

Brochure for MGE PMM displaying features and specifications
Design/Configuration
Title
Size
Updated On

Title

Power Management Module 30 - 300 kVA Technical Specifications
PDF
PDF

Size

1461KB

Updated On

2023-10-04

Contains Technical Data, Facility Planning, Connections, Drawings, Options, Warranty
