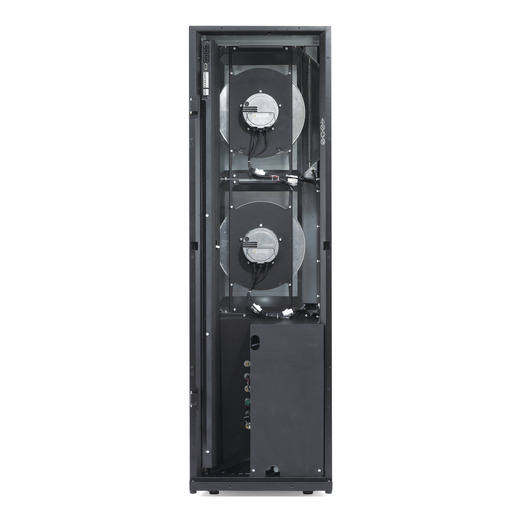

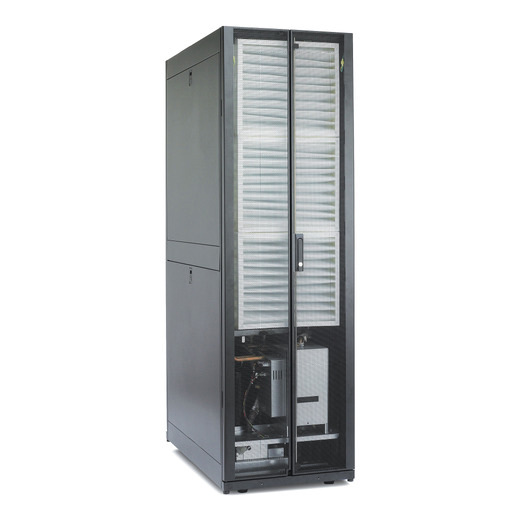

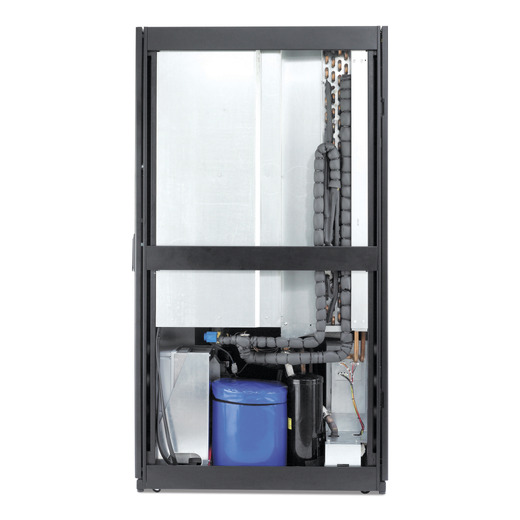

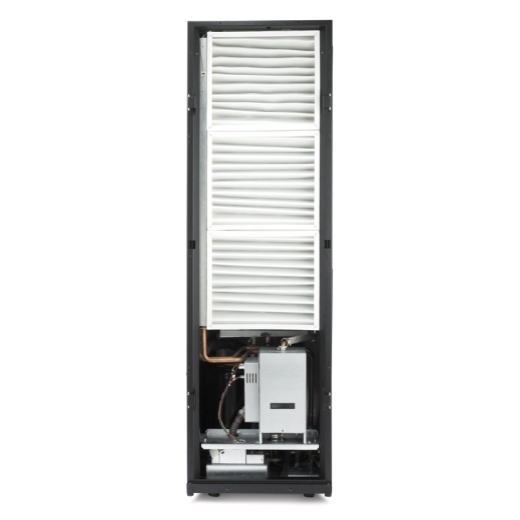

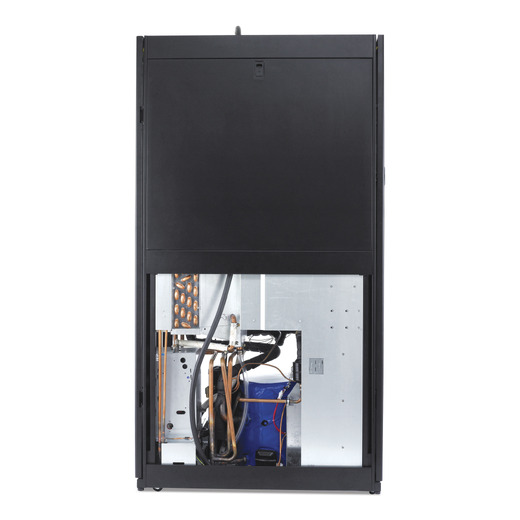

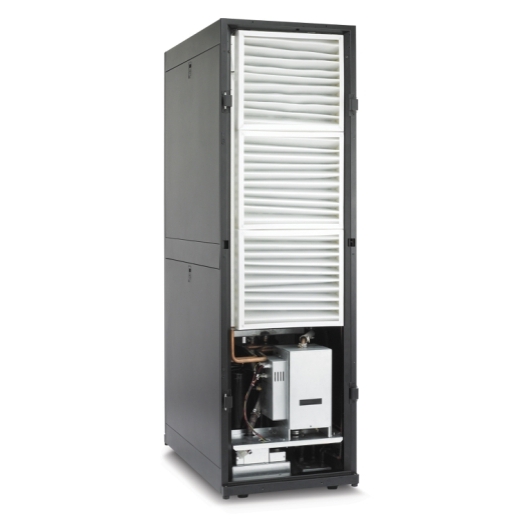

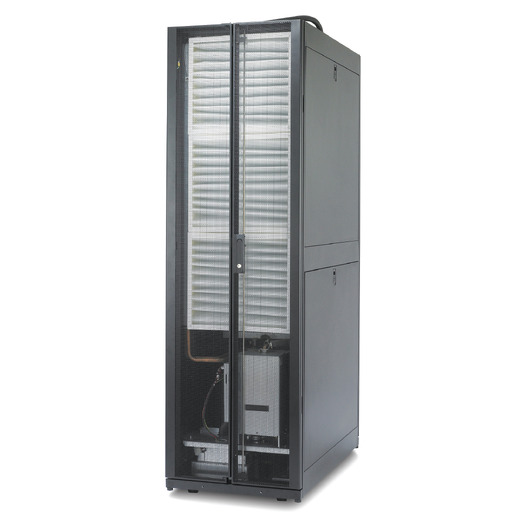

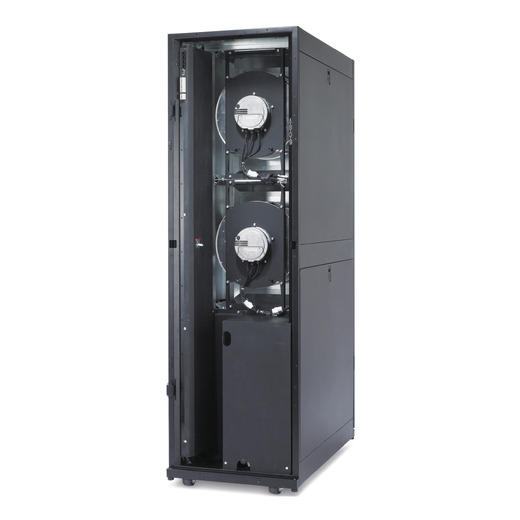

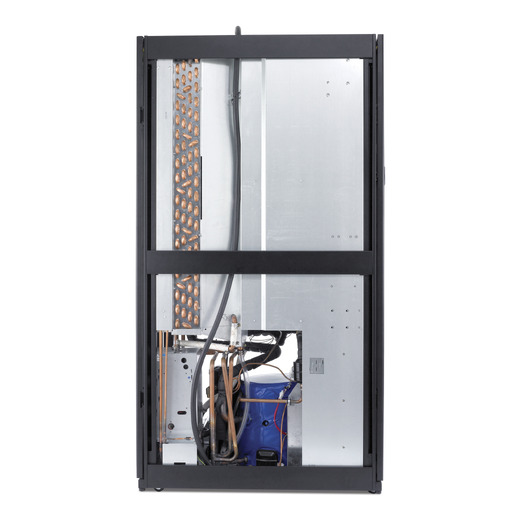

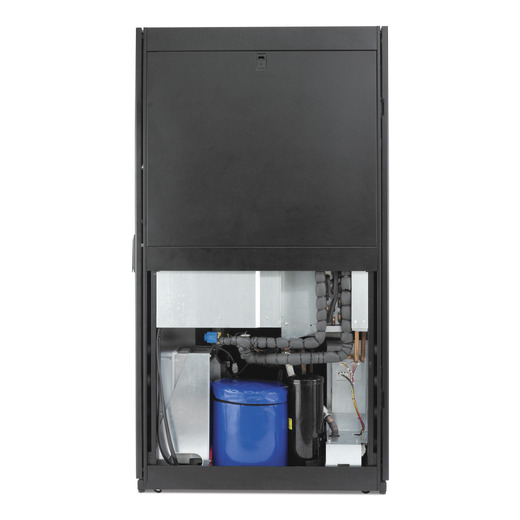

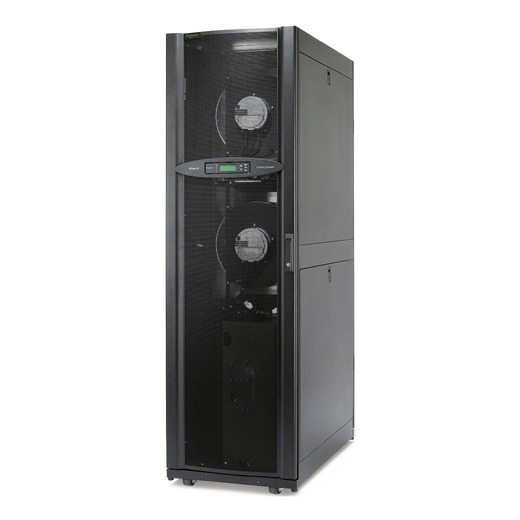

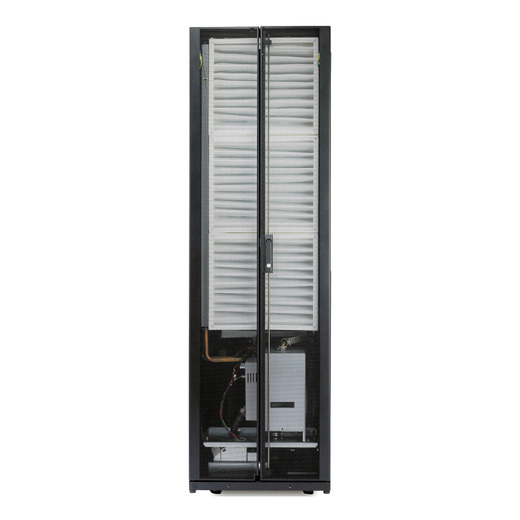

InRow RP DX Air Cooled 460-480V 60Hz

ACRP101

InRow RP DX Air Cooled 460-480V 60Hz

Discontinued

Call Sales Support
800-800-4272

ACRP101

InRow RP DX Air Cooled 460-480V 60Hz

Containment system compatible

The unit can be combined with a Rack or Hot Aisle Containment System to eliminate hot air mixing and maximize cooling efficiency

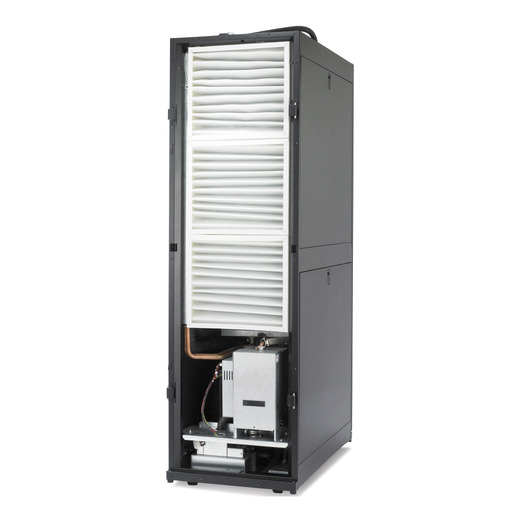

Humidifier

Humidity is managed through a self-contained steam canister humidifier for maximum efficiency and ease of maintenance. The pure steam canister maintains consistent capacity output, and requires very little or no scheduled maintenance.

Uniflair Direct Expansion InRow Cooling Features & Benefits

Availability

Rack inlet temperature control

Reduces the risk of hot spots at the rack level
Predictable cooling

Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
Active response controls

Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.

Agility

Modular design

Modular design provides scalable solutions to add cooling as demand increases.
Scalable densities

Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.

Serviceability

Easy service access

Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.

Manageability

Real-Time capacity monitoring

Real-time display of current and available cooling.
Microprocessor controller

Utilizes intelligent, active response control, and real-time monitoring. The system is controlled by a microprocessor providing high level control functionality and human interface via a four line, eighty character, alphanumeric display
Building management system integration

Send alarms and data points allowing you to manage critical building infrastructure from a single system.

Total cost of Ownership

Variable speed fans

Variable speed fans reduce energy consumption during off-peak cooling periods.
Row-based architecture

Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.

Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Belize , Canada , Colombia , Costa Rica , Dominican Republic , Ecuador , Greece , Guatemala , Guyana , Honduras , Jamaica , South Korea , Cayman Islands , Morocco , Mexico , Nicaragua , Netherlands , Panama , Peru , Puerto Rico , El Salvador , Trinidad & Tobago , United States , Venezuela , U.S. Virgin Islands

Print Technical Specification

Input

Input Power
21000 Watts

Communications & Management

Control panel
Multifunction LCD status and control console

Physical

Maximum Height
78.39inches ( 1991MM , 199.1CM )
Maximum Width
23.62inches ( 600MM , 60.0CM )
Maximum Depth
42.13inches ( 1070MM , 107.0CM )
Rack Height
42U
Net Weight
834.76lbs. ( 378.64KG )
Shipping weight
1078.28lbs. ( 489.1KG )
Shipping Height
85.28inches ( 2166MM , 216.6CM )
Shipping Width
44.76inches ( 1137MM , 113.7CM )
Shipping Depth
33.46inches ( 850MM , 85.0CM )
Color
Black

Conformance

Approvals
cUL listed, FCC part 15 class A, Industry Canada, UL listed
Standard warranty
1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up

General

Air Discharge Patterns
Horizontal
Air Flow
4600.1CFM ( 2171.0lps )
Compressor Type
Reciprocating
Condensate Pump Capacity
7.9gal/hour ( 0.01lps )
Humidification Value
6.61pounds/hour
Intake Air
Rear return
