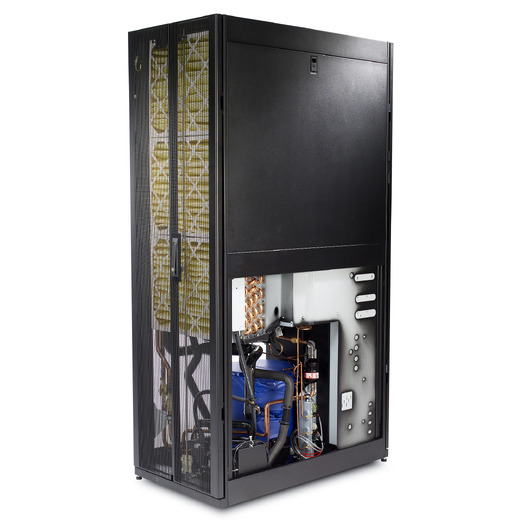

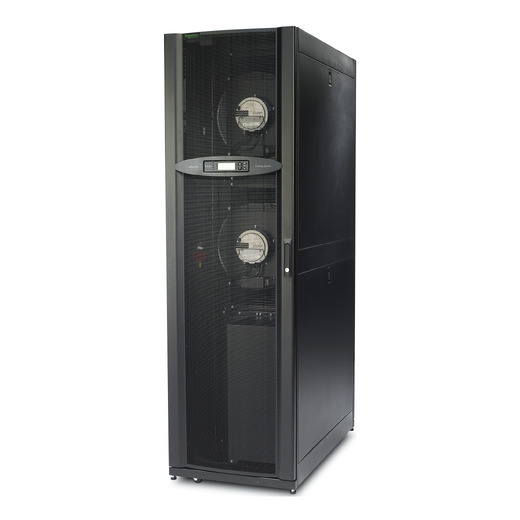

InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz

Share:
InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz
InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz

InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz

ACRD500

InRow RD, 600mm, Air Cooled, 200-240V, 50/60Hz
Discontinued
Call Sales Support
800-800-4272

Uniflair Direct Expansion InRow Cooling Features & Benefits

  • Rack inlet temperature control
    Reduces the risk of hot spots at the rack level
  • Predictable cooling
    Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
  • Active response controls
    Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
  • Modular design
    Modular design provides scalable solutions to add cooling as demand increases.
  • Scalable densities
    Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
  • Easy service access
    Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.
  • Real-Time capacity monitoring
    Real-time display of current and available cooling.
  • Microprocessor controller
    Utilizes intelligent, active response control, and real-time monitoring. The system is controlled by a microprocessor providing high level control functionality and human interface via a four line, eighty character, alphanumeric display
  • Building management system integration
    Send alarms and data points allowing you to manage critical building infrastructure from a single system.
  • Variable speed fans
    Variable speed fans reduce energy consumption during off-peak cooling periods.
  • Row-based architecture
    Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Belize , Canada , Colombia , Costa Rica , Dominican Republic , Ecuador , Greece , Guatemala , Guyana , Honduras , Italy , Jamaica , South Korea , Cayman Islands , Morocco , Mexico , Nicaragua , Netherlands , Panama , Peru , Philippines , Puerto Rico , El Salvador , Trinidad & Tobago , Taiwan , United States , Venezuela , U.S. Virgin Islands

Print Technical Specification

Input

  • Input frequency
    50/60 Hz
  • Input Connections
    Hard wire 4-wire (3P + E)

Communications & Management

  • Control panel
    Multifunction LCD status and control console

Physical

  • Maximum Height
    78.39inches ( 1991MM , 199.1CM )
  • Maximum Width
    23.62inches ( 600MM , 60.0CM )
  • Maximum Depth
    42.13inches ( 1070MM , 107.0CM )
  • Rack Height
    42U
  • Net Weight
    809.69lbs. ( 367.27KG )
  • Shipping weight
    946.99lbs. ( 429.55KG )
  • Shipping Height
    85.28inches ( 2166MM , 216.6CM )
  • Shipping Width
    44.76inches ( 1137MM , 113.7CM )
  • Shipping Depth
    33.46inches ( 850MM , 85.0CM )
  • Color
    Black

Conformance

  • Approvals
    CE, cUL listed, Industry Canada, UL listed, VDE
  • Standard warranty
    1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up

General

  • Air Flow
    4600.1CFM ( 2171.0lps )
  • Compressor Type
    Reciprocating
  • Condensate Pump Capacity
    7.9gal/hour ( 0.01lps )
