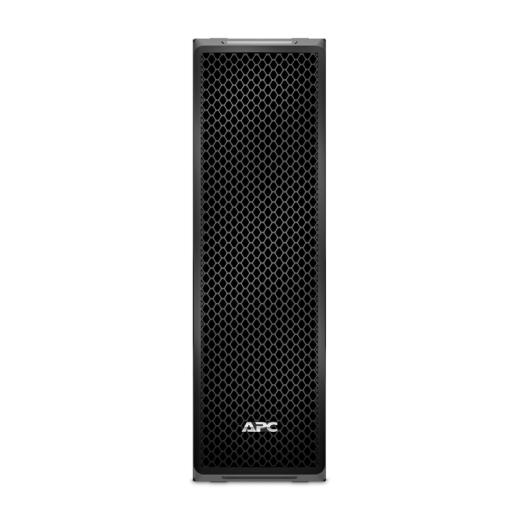

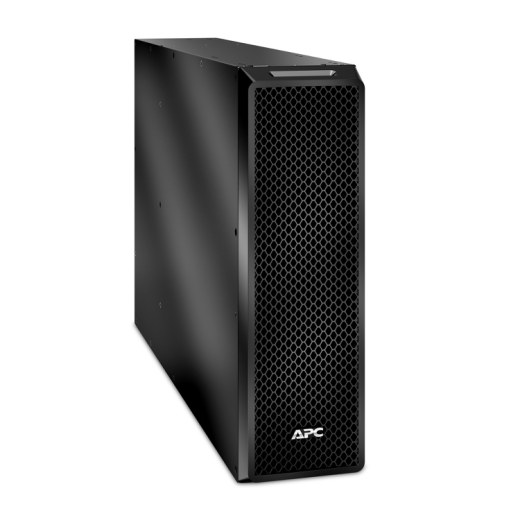

APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

Share:
APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets
APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

SRT5KTF

In stock
$963.00
Quantity

SRT5KTF

APC Smart-UPS SRT Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

Accessory solutions to tailor the Smart-UPS to meet your specific needs

Includes : User manual

  • Transformer for Step-down or Step-up or Isolation
    Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Smart-UPS Accessories Features & Benefits

Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Chile , Colombia , Costa Rica , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , South Korea , Cayman Islands , St. Lucia , Mexico , Nicaragua , Panama , Peru , Puerto Rico , Portugal , Paraguay , El Salvador , Trinidad & Tobago , Taiwan , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V , 208V
  • Other Output Voltages
    240
  • Always on Outlets
    12
  • Maximum Total Current Draw
    5000

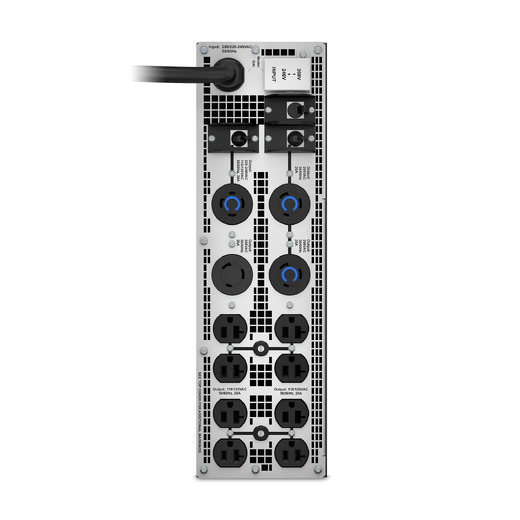

  • Output Connections
    (8) NEMA 5-20R (Battery Backup)
    (2) NEMA L6-20R (Battery Backup)
    (1) NEMA L6-30R (Battery Backup)
    (1) NEMA L14-30R (Battery Backup)

Input

  • Nominal Input Voltage
    208V , 240V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA L6-30P
  • Cord Length
    2.95ft ( 0.9meters )
  • Number of Power Cords
    1

Physical

  • Maximum Height
    17.01inches ( 432MM , 43.2CM )
  • Maximum Width
    5.12inches ( 130MM , 13.0CM )
  • Maximum Depth
    25.98inches ( 660MM , 66.0CM )
  • Net Weight
    125.0lbs. ( 56.7KG )
  • Shipping weight
    139.99lbs. ( 63.5KG )
  • Shipping Height
    13.66inches ( 347MM , 34.7CM )
  • Shipping Width
    38.58inches ( 980MM , 98.0CM )
  • Shipping Depth
    23.74inches ( 603MM , 60.3CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 (Non-condensing) %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 (Non-condensing) %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Smart-UPS On-Line Isolation and Step-Down Transformer SRT5KTF
PDF
PDF

Size

273KB

Updated On

2022-08-10

Environmental Profile
Title
Size
Updated On

Title

Product Environmental Profile for Smart UPS greater than 1500_EN
PDF
PDF

Size

1153KB

Updated On

2024-09-17

Title
Size
Updated On
Smart-UPS On-Line\Package
SRT3000RMXLT-5KTF+SRT96RMBP- Smart-UPS-Online
CAD Source File
5662KB
2023-10-04

SRT3000RMXLT-5KTF+SRT96RMBP- Smart-UPS-Online
PDF
1145KB
2023-10-04

SRT3000XLT-5KTF+SRT96BP - Smart-UPS-Online
CAD Source File
6214KB
2023-10-04

SRT3000XLT-5KTF+SRT96BP - Smart-UPS-Online
PDF
1203KB
2023-10-04

Smart-UPS On-Line, Step-Down Transformers, Single-Line Diagrams, 5kVA
SRT5KTF-SD - APC Smart-UPS SRT 5kVA Tower Isolation-Step-Down Transformer
CAD Source File
151KB
2023-10-04

SRT5KTF-SD - APC Smart-UPS SRT 5kVA Tower Isolation-Step-Down Transformer
PDF
155KB
2023-10-04

Smart-UPS On-Line, Step-Down Transformers, Packages, 5kVA
SRT5KTF - APC Smart-UPS SRT 5kVA Tower Isolation-Step-Down Transformer Tower
CAD Source File
3006KB
2023-10-04

SRT5KTF - APC Smart-UPS SRT 5kVA Tower Isolation-Step-Down Transformer Tower
PDF
726KB
2023-10-04

Smart-UPS On-Line,Package with Step-Down Transformer, 8kVA
SRT8KXLT-5KTF - APC Smart-UPS SRT 8000VA Tower 208V + 192V Battery Pack
CAD Source File
10119KB
2023-10-04

SRT8KXLT-5KTF - APC Smart-UPS SRT 8000VA Tower 208V + 192V Battery Pack
PDF
1342KB
2023-10-04

Smart-UPS On-Line,Package with Step-Down Transformer, 6kVA
SRT6KXLT-5KTF - APC Smart-UPS 6kVA Tower 2U Step-Down Transformer + 192V Battery Pack
CAD Source File
8448KB
2023-10-04

SRT6KXLT-5KTF - APC Smart-UPS 6kVA Tower 2U Step-Down Transformer + 192V Battery Pack
PDF
1264KB
2023-10-04

Smart-UPS On-Line,Package with Step-Down Transformer, 5kVA
SRT5KXLT-5KTF - APC Smart-UPS 5kVA 2U Tower Step-Down Transformer + 192V Battery Pack
CAD Source File
8094KB
2023-10-04

SRT5KXLT-5KTF - APC Smart-UPS 5kVA 2U Tower Step-Down Transformer + 192V Battery Pack
PDF
1276KB
2023-10-04

Smart-UPS On-Line,Package with Step-Down Transformer, 10kVA
SRT10KXLT-5KTF2 - APC Smart-UPS SRT 10000VA Tower 208V with Transformers
CAD Source File
11775KB
2023-10-04

SRT10KXLT-5KTF2 - APC Smart-UPS SRT 10000VA Tower 208V with Transformers
PDF
1550KB
2023-10-04
