APC Home Office SurgeArrest 12 Outlets, 120V

Share:

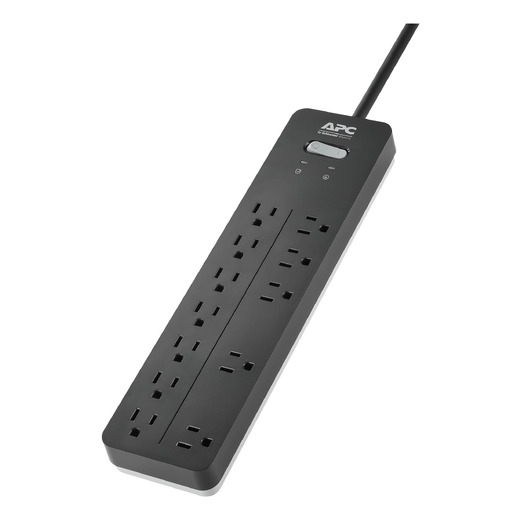

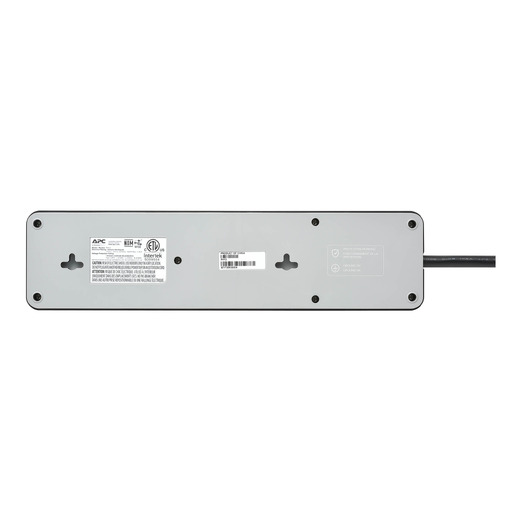

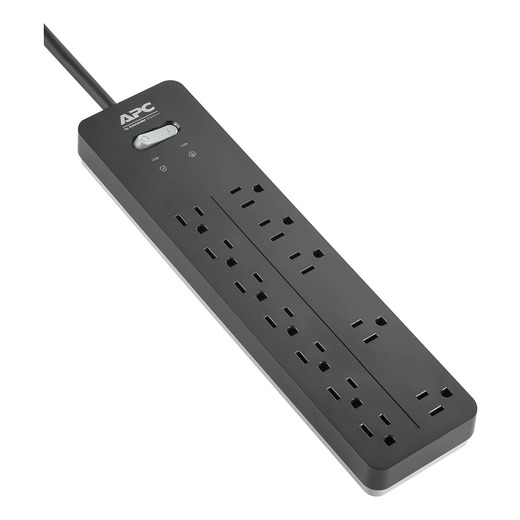

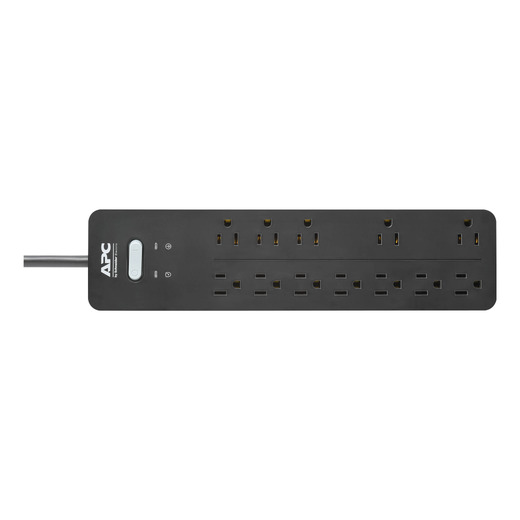

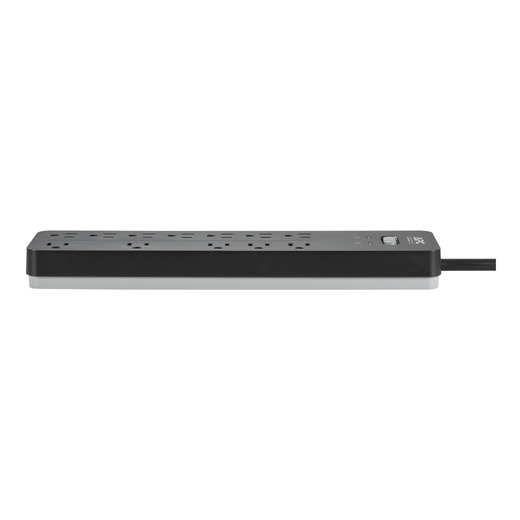

APC Home Office SurgeArrest 12 Outlets, 120V

APC Home Office SurgeArrest 12 Outlets, 120V

PH12

APC Home Office SurgeArrest 12 Outlets, 120V
Discontinued
Call Sales Support
800-800-4272

PH12

APC Home Office SurgeArrest 12 Outlets, 120V

Professional-grade Electrical Surge Protection for Computers and Electronics

Includes : User manual

  • Catastrophic Event Protection
    SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
  • EMI and RFI noise filtering
    Reduces line noise that can cause data loss and keyboard errors.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • IEEE let-through ratings and regulatory agency compliance
    APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
  • Lightning and Surge Protection
    When measured via ANSI/IEEE 587 Category ''A" and "B" tests, the suppression performance of the APC Smart-UPS is superior to virtually all separate surge suppressors.
  • Noise Filtering
    Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
  • Right Angle Plug
    Right-angle plug for safe, easy connection even behind desks. It’s also wall-mountable for convenient, space-saving placement.

SurgeArrest Home/Office Features & Benefits

  • Overload Indicator
    Indicator illuminates when connected equipment draws more power than unit’s capacity. To remedy the condition, unplug less vital equipment.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • Catastrophic Event Protection
    SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
  • Lightning and Surge Protection
    To prevent damage to your equipment from electric power surges and spikes.
  • IEEE let-through ratings and regulatory agency compliance
    APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through a surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
  • Noise Filtering
    Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
  • Data-line Protection
    Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
  • 180 degree Rotating Cord Retainer
    A 180-degree rotating cord with strain relief offers flexibility in positioning the SurgeArrest, and in routing the power cord.
  • Transformer Block Spacing
    Connect bulky transformer block plugs without covering up other outlets.
  • Receptacle Shock Safety Shutters
    Shutters protect users from accidental contact with unused outlets.
  • Building Wiring Fault Indicator
    This LED informs users of potentially dangerous wiring problems in the wall circuit.
  • Adjustable Cable Management
    Keeps cords and cables neat and organized.
  • Protection working indicator
    SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
  • Phone Line Splitter
    Allows use of two pieces of equipment at once, such as a modem and phone.
Product Distribution
Product Distribution

United Arab Emirates , Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Austria , Australia , Barbados , Belgium , Bulgaria , Bermuda , Bolivia , Bahamas , Belize , Canada , Switzerland , Chile , China , Colombia , Costa Rica , Serbia and Montenegro , Czechia , Germany , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Spain , Finland , France , Grenada , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Italy , Jamaica , Japan , St. Kitts & Nevis , Cayman Islands , Kazakhstan , St. Lucia , Lithuania , Latvia , Morocco , North Macedonia , Mexico , Malaysia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Panama , Peru , Philippines , Poland , Puerto Rico , Portugal , Paraguay , Romania , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , El Salvador , Tunisia , Trinidad & Tobago , Ukraine , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , South Africa

Print Technical Specification

Output

  • Number of Outlets
    12.0
  • Receptacle Style
    NEMA 5-15R

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Cord Length
    5.91ft ( 1.8meters )
  • Number of Power Cords
    1
  • Maximum Input Current
    15.0A
  • Maximum Line Current
    15A

Surge Protection and Filtering

  • Surge energy rating
    2160Joules
  • ts_nm_surge_response
    1ns

Physical

  • Maximum Height
    1.18inches ( 30MM , 3.0CM )
  • Maximum Width
    3.03inches ( 77MM , 7.7CM )
  • Maximum Depth
    12.09inches ( 307MM , 30.7CM )
  • Net Weight
    1.48lbs. ( 0.67KG )
  • Shipping weight
    1.7lbs. ( 0.77KG )
  • Shipping Height
    1.89inches ( 48MM , 4.8CM )
  • Shipping Width
    13.19inches ( 335MM , 33.5CM )
  • Shipping Depth
    5.71inches ( 145MM , 14.5CM )
  • Color
    Black
  • Master Carton Dimensions (Length x Width x Height)
    13.78 x 6.3 x 12.6inches ( 350 x 160 x 320MM )
  • Master Carton Units
    6.0
  • Master Carton Weight
    11.04lbs. ( 5.01 )
  • Units per Pallet
    324.0
  • SCC Codes
    10731304335945

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 (Non-condensing) %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 (Non-condensing) %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    MET Canada, MET USA, UL 1363, UL 1449
  • Equipment protection policy
    Lifetime : $150000
  • Standard warranty
    Lifetime

Sustainable Offer Status

  • Other Environmental Compliance
    China RoHS
Manuals and Warranties
Title
Size
Updated On

Title

SurgeArrest Home/Office PH8/PH12 NT/NTW/U2/U2W/W
PDF
PDF

Size

321KB

Updated On

2023-09-29

User manual of SurgeArrest Home/Office PH8, PH8NT, PH8U2, PH12, PH12NT, PH12U2, PH8W, PH8NTW, PH8U2W, PH12W, PH12NTW, PH12U2W
Agency Approvals
Title
Size
Updated On

Title

cETLus certificate for APC Home Office SurgeArrest 8/12 Outlets with/without 2 USB charging ports
PDF
PDF

Size

134KB

Updated On

2024-02-22

Relocatable Power Taps [UL 1363:2018 Ed.5] Cord Reels and Multi-outlet Assemblies [CSA C22.2#308:2018 Ed.2] Surge Protective Devices [UL 1449:2014 Ed.4+R:01Aug2018]
