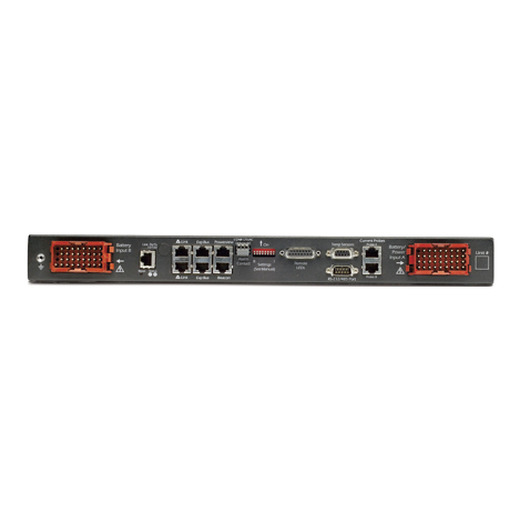

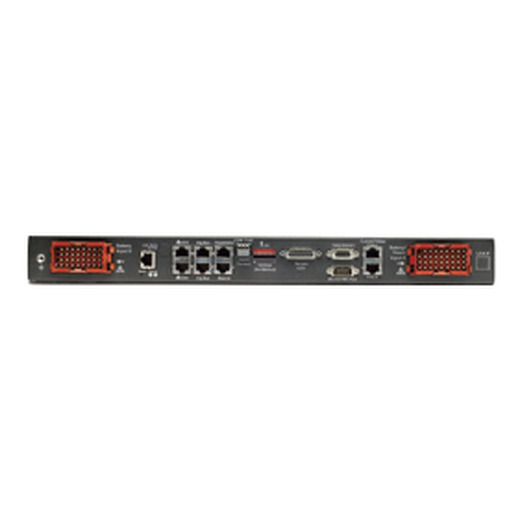

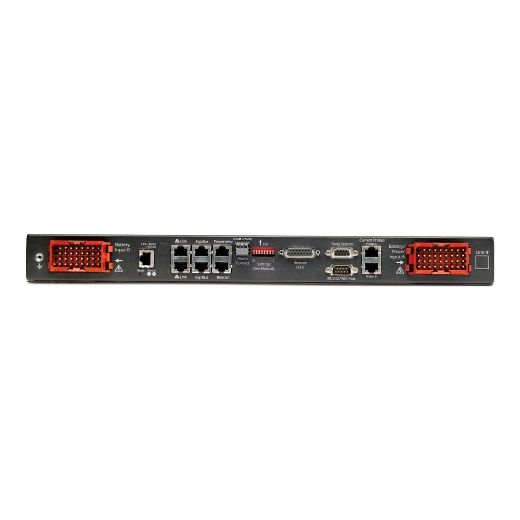

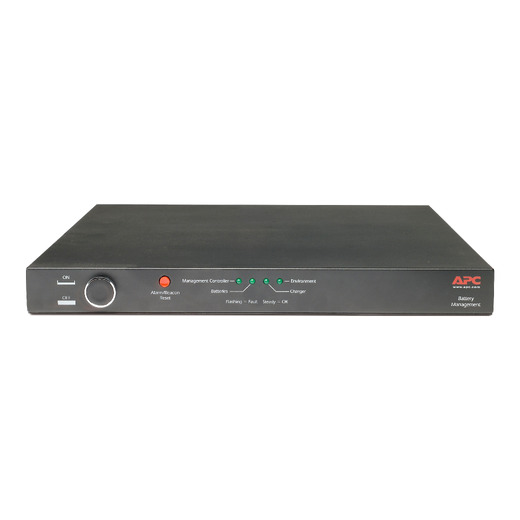

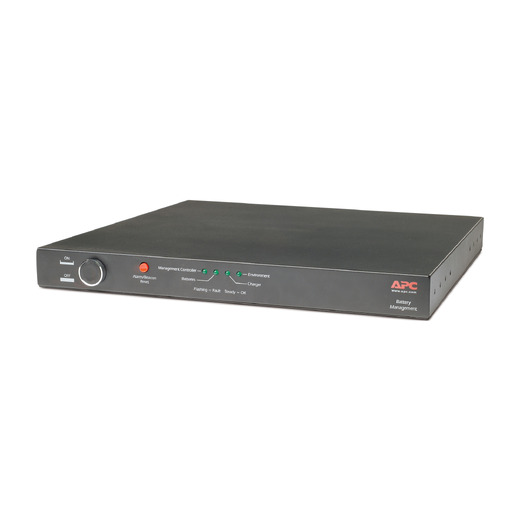

APC Battery Management System

APC Battery Management System

AP9921X

APC Battery Management System
Discontinued
Call Sales Support
800-800-4272

AP9921X

APC Battery Management System

Smart-charging and remote battery management for stationary UPS batteries.

Includes : CD with software , User manual

  • SNMP management
    Monitor and manage a device using industry standard protocol.
  • Status Indicator LED's
    Dual Status Indicator - Alerts you to the unit's power status. Green indicates it's ready for use. The Red indicator signals the unit's shutdown to save your automobile battery from draining.

Battery Management Features & Benefits

  • Read-only Access
    Share access without risking unauthorized configuration changes.
  • Password security
    User-selectable password with strong password rules and reset password mechanism.
  • Fault notification
    Be notified of problems to ensure crucial situations are dealt with in a timely manner.
  • Battery fault detection
    Monitors room and individual battery temperature changes for early detection of thermal runaway, shorted cells, open circuit, and bad battery.
  • Individual battery monitoring
    Monitoring voltage and current ensures that individual UPS batteries are ready for use and replaced only when necessary.
  • Individual battery charging
    Supplemental individual charging ensures each battery is fully charged and helps prevent premature aging due to over-charging.
  • Telnet management
    Provides a simple telnet session or SSH for remote battery management access.
  • Data logging
    Identify problematic trends before they escalate or export the data log for analysis.

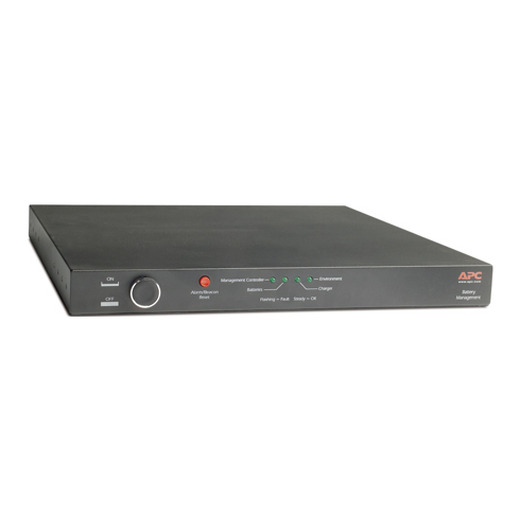

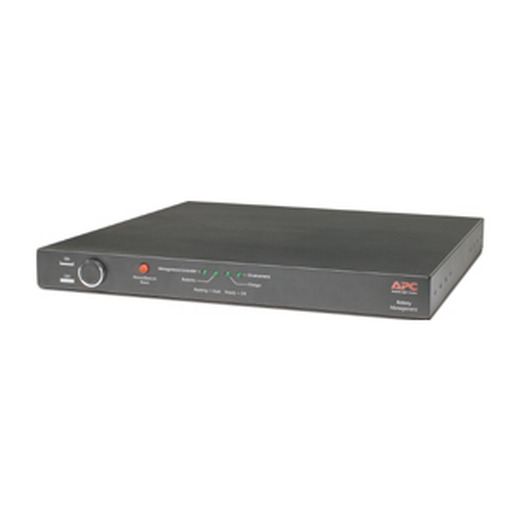

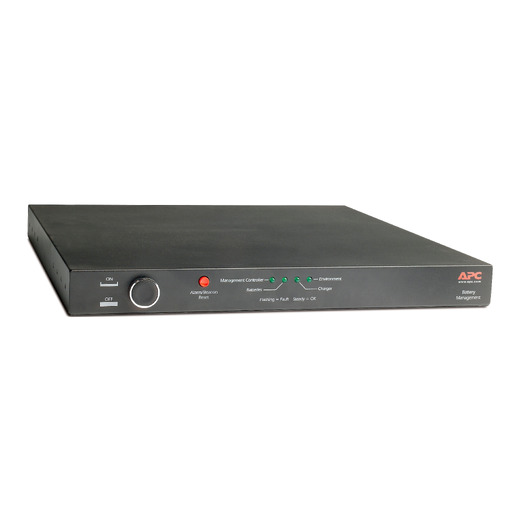

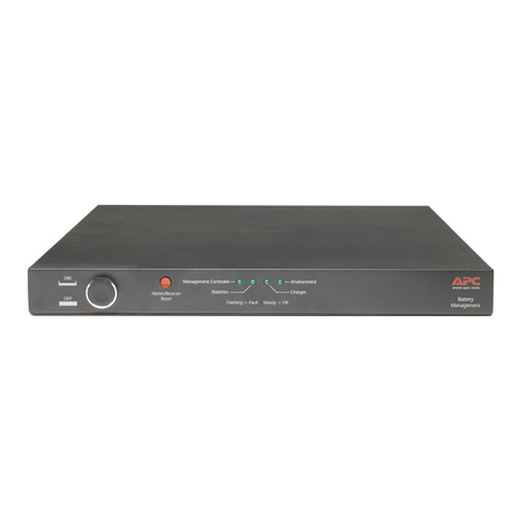

  • Local LED status
    Four LEDs on the front panel indicate problems with batteries, charger, environment, or unit itself.
  • Building management system integration
    Send alarms and data points allowing you to manage critical building infrastructure from a single system.
  • Event logging
    Pinpoint the timing and sequence of events leading up to an incident with the event log.

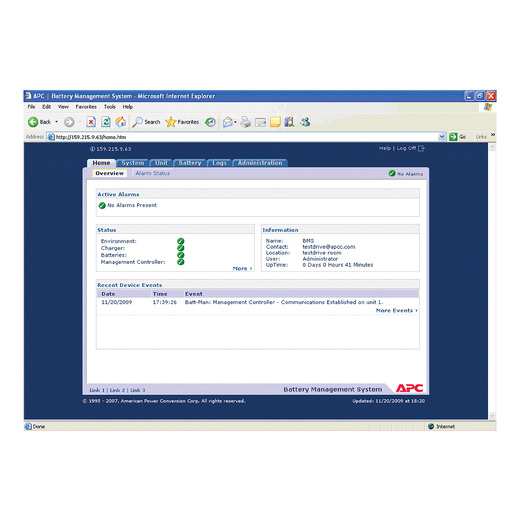

  • Browser Accessible
    View the user interface with a browser. Gives quick access from anywhere on the network without the need to install software.
  • Battery compatibility
    VRLA or wet cell 2-, 4-,8- or 12v batteriesbr /Nickel-cadmium 1.2 or 2.4v batteries (AP9921X)
Product Distribution
Product Distribution

United Arab Emirates , Albania , Armenia , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , France , Gabon , Georgia , Ghana , Gambia , Croatia , Hungary , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , Kuwait , Cayman Islands , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , North Macedonia , Mali , Mongolia , Mauritania , Malta , Malawi , Mozambique , Namibia , Nigeria , Norway , New Zealand , Oman , Pakistan , Portugal , Romania , Rwanda , Saudi Arabia , Sweden , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Togo , Tajikistan , Turkmenistan , Tunisia , Turkey , Tanzania , Ukraine , Uganda , United States , Uzbekistan , Yemen , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.05inches ( 433MM , 43.3CM )
  • Maximum Depth
    18.07inches ( 459MM , 45.9CM )
  • Rack Height
    1U
  • Net Weight
    11.88lbs. ( 5.39KG )
  • Shipping weight
    18.7lbs. ( 8.48KG )
  • Shipping Height
    3.5inches ( 89MM , 8.9CM )
  • Shipping Width
    22.8inches ( 579MM , 57.9CM )
  • Shipping Depth
    21.81inches ( 554MM , 55.4CM )
  • Color
    Black

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 30000ft ( 0 - 9144meters )

Conformance

  • Approvals
    C-Tick, CE, cUL listed, FCC part 15 class B, UL listed, VCCI, VDE
  • Standard warranty
    1 year repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Brochure
Title
Size
Updated On

Title

APC Battery Management System Brochure
PDF
PDF

Size

77KB

Updated On

2023-10-04

Brochure for the patented APC Battery Management System describing features, theory of operation, and specifications.
Agency Approvals
Title
Size
Updated On

Title

CE EMC ,VCCI for Battery Management
PDF
PDF

Size

504KB

Updated On

2024-02-22

CE EMC ,VCCI for Battery Management and complies to AS/NZS 3548,CISPR 22,EN 55022,EN 55024,EN61000-4-2:1995,EN61000-4-3:1998,EN61000-4-4:1995,EN61000-4-6:1996,FCC part 15,ICES-003,VCCI EMC Emissions

Title

VDE GS Mark for Battery Management System
PDF
PDF

Size

1457KB

Updated On

2024-02-22

International Safety Approval for the Battery Management System
