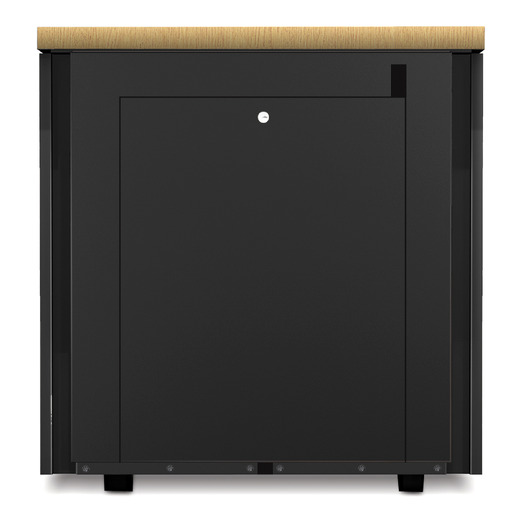

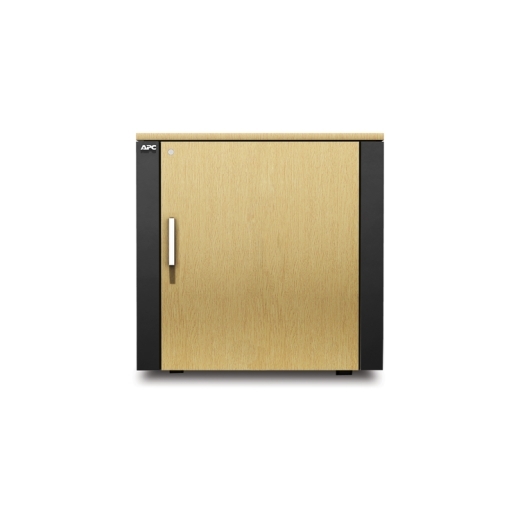

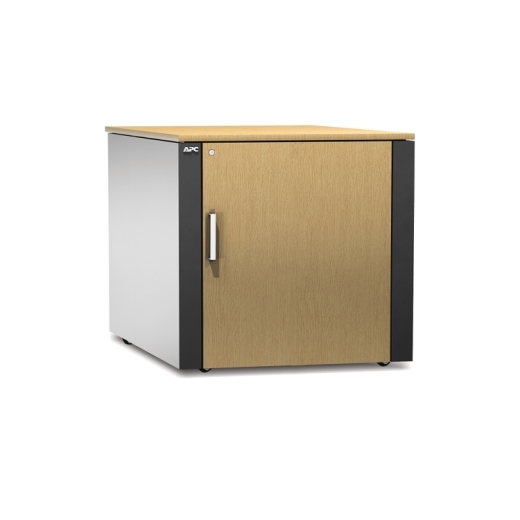

APC NetShelter CX, Mini, Soundproof Server Rack Enclosure, 100V to 240V, Grey and Oak, 744H x 688W x 952D mm

APC NetShelter CX, Mini, Soundproof Server Rack Enclosure, 100V to 240V, Grey and Oak, 744H x 688W x 952D mm

AR4000MV

APC NetShelter CX, Mini, Soundproof Server Rack Enclosure, 100V to 240V, Grey and Oak, 744H x 688W x 952D mm
Discontinued

AR4000MV

APC NetShelter CX, Mini, Soundproof Server Rack Enclosure, 100V to 240V, Grey and Oak, 744H x 688W x 952D mm

Netshelter CX Mini is specifically designed to house a complete small-office IT installation comprised of one or two servers, network hardware and peripheral devices. It combines extreme noise reduction and moderate thermal capacity with exceptional reliability and an all-inclusive, plug-and-play specification. Designed to accept tower form factor servers, the CX Mini can also be converted to accept rack form factor servers using a 12U rack mount conversion kit (AR4000MV12U). The resulting EIA rack is 600 mm/23.6" deep. NAM power cords sold separately, part number AR4605.

Includes : (1) IEC to NEMA 5-15P power cord , (1) IEC-C13 - Shuko input power cord , (2) Fans , (3) IEC-C14 - NEMA 5-15R equipment adapter cords , Brush strips , Door , Key(s) , Lockable door , Office-type casters , Power strip with (3) IEC receptacles , Removeable lockable rear panel , Soundproofing , Unpacking sheet

  • Dedicated rear cable channel
    The cable port has a capacity of up to 30 cables and is situated perfectly for ground or under-floor cabling.
  • Integrated heat removal
    High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
  • Integrated power strip
    Provided with a power strip which has 3 available IEC receptacles, 3 NEMA equipment power cords, 1 NEMA input cord and 1 Schuko input cord
  • Removable lockable rear panel
    Provides customers with easy accessibility to equipment and allows equipment to be installed without powering off.

NetShelter CX Enclosures Features & Benefits

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Plug and Play setup
    Fast and Easy set up
  • Special packaging options for shipping rack with equipment pre-racked
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Product Distribution
Product Distribution

United Arab Emirates , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Costa Rica , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Egypt , Eritrea , Spain , Ethiopia , Finland , Gabon , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , Mali , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , New Zealand , Oman , Panama , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Réunion , Romania , Rwanda , Saudi Arabia , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Nominal Input Voltage
    100V , 120V , 200V , 208V , 230V , 240V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC 60320 C14, NEMA 5-15P
  • Cord Length
    0.6meters
  • Number of Power Cords
    8
  • Input Power
    10 Watts

Physical

  • Maximum Height
    720MM , 72.0CM
  • Maximum Width
    690MM , 69.0CM
  • Maximum Depth
    930MM , 93.0CM
  • Net Weight
    75.0KG
  • Shipping weight
    80.0KG
  • Shipping Height
    750MM , 75.0CM
  • Shipping Width
    740MM , 74.0CM
  • Shipping Depth
    980MM , 98.0CM
  • Color
    Grey , Oak
  • Maximum Mounting Depth
    700.0MM , 70.0CM
  • Weight Capacity (static load)
    317.5KG

Conformance

  • Approvals
    TAA compliance
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On
PDF

Size

810KB

Updated On

2023-09-29

Unpacking and quick installation instructions for the NetShelter CX Mini Enclosure
Brochure
Title
Size
Updated On
PDF

Size

375KB

Updated On

2024-07-10

NetShelter CX, solving problems for the Education vertical
PDF

Size

335KB

Updated On

2024-02-21

Made for commercial environments, like offices, retail, education, or healthcare facilities, our C-Series includes the same capabilities as C-Series with additional features such as fan ventilation, air filtration, and soundproofing.
PDF

Size

338KB

Updated On

2023-10-04

Full list of compatible Rack PDUs for the NetShelter CX enclosures
PDF

Size

260KB

Updated On

2023-10-04

Quick Reference Brochure highlighting the features and benefits of the NetShelter CX Mini Enclosure
PDF

Size

355KB

Updated On

2023-09-29

NetShelter CX, solving problems for the Retail vertical
PDF

Size

65KB

Updated On

2023-09-29

NetShelter CX, solving problems for the Healthcare vertical
PDF

Size

355KB

Updated On

2023-09-29

NetShelter CX, Solving problems for small to medium businesses
PDF

Size

539KB

Updated On

2023-09-29

APC NetShelter CX cabinets support quiet deployment of Cisco Catalyst 2960 switches directly into offices, doing away with the need for dedicated, air conditioned networking closets.
