Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

Share:

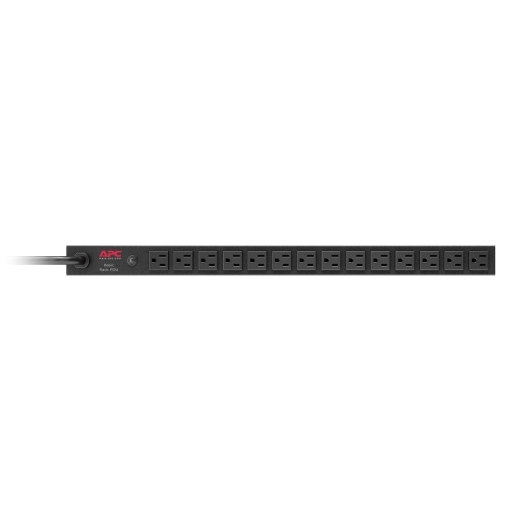

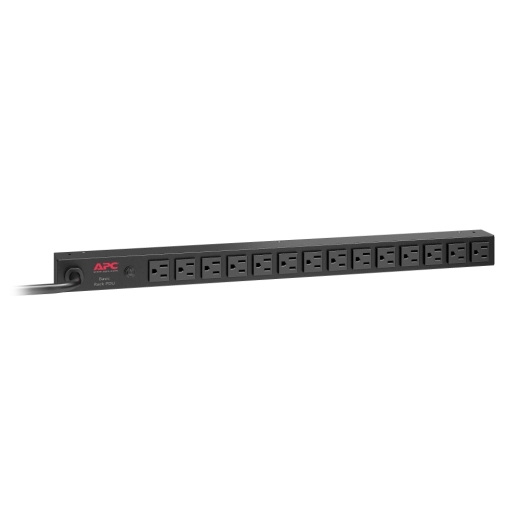

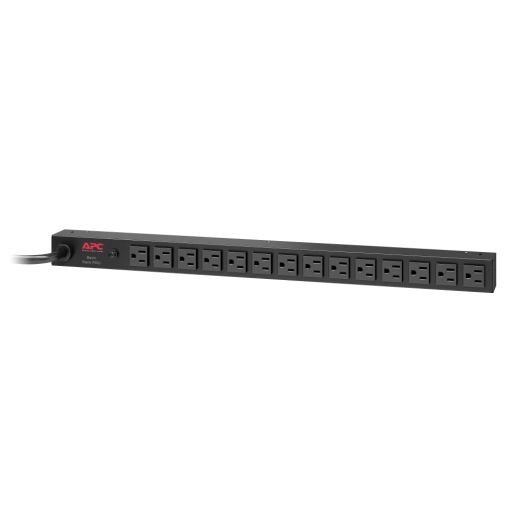

Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

AP9551

In stock
$271.00
Quantity

AP9551

Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

Reliable rack power distribution

Includes : Rack mounting brackets , Toolless mounting kit , User manual

  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

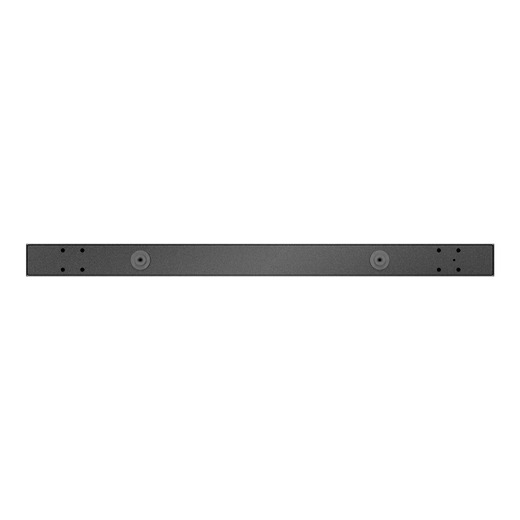

  • Vertical Mounting Capabilities
    Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

NetShelter Basic Rack PDUs Features & Benefits

  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
Product Distribution
Product Distribution

Netherlands Antilles , Barbados , Bermuda , Bahamas , Canada , Dominica , Dominican Republic , Ecuador , Grenada , Guadeloupe , Guatemala , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Martinique , Nicaragua , Panama , Puerto Rico , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , United States , St. Vincent & Grenadines , Venezuela

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    20
  • Output Connections
    (14) NEMA 5-15R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz

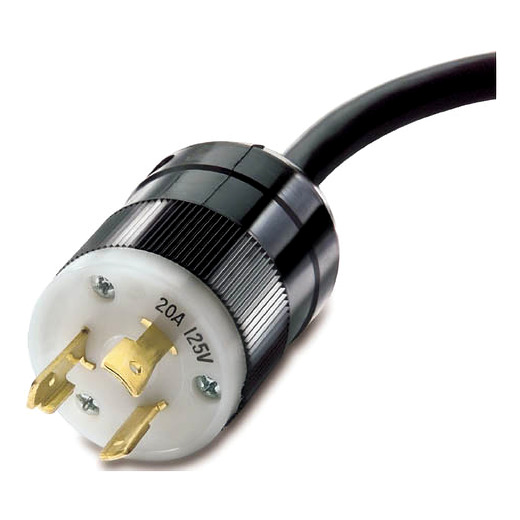

  • Input Connections
    NEMA L5-20P
  • Cord Length
    3.7meters
  • Acceptable Input Voltage
    90 - 132VAC
  • Number of Power Cords
    1
  • Load Capacity
    1920VA
  • Maximum Input Current
    20A
  • Maximum Line Current
    20A
  • Regulatory Derated Input Current (North America)
    16A

Physical

  • Maximum Height
    610MM , 61.0CM
  • Maximum Width
    42MM , 4.2CM
  • Maximum Depth
    44MM , 4.4CM
  • Net Weight
    2.2KG
  • Shipping weight
    2.92KG
  • Shipping Height
    648MM , 64.8CM
  • Shipping Width
    152MM , 15.2CM
  • Shipping Depth
    178MM , 17.8CM
  • Color
    Black

Environmental

  • Operating Temperature
    0 - 45 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 3048meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 15240meters

Conformance

  • Approvals
    CSA, cUL listed, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
